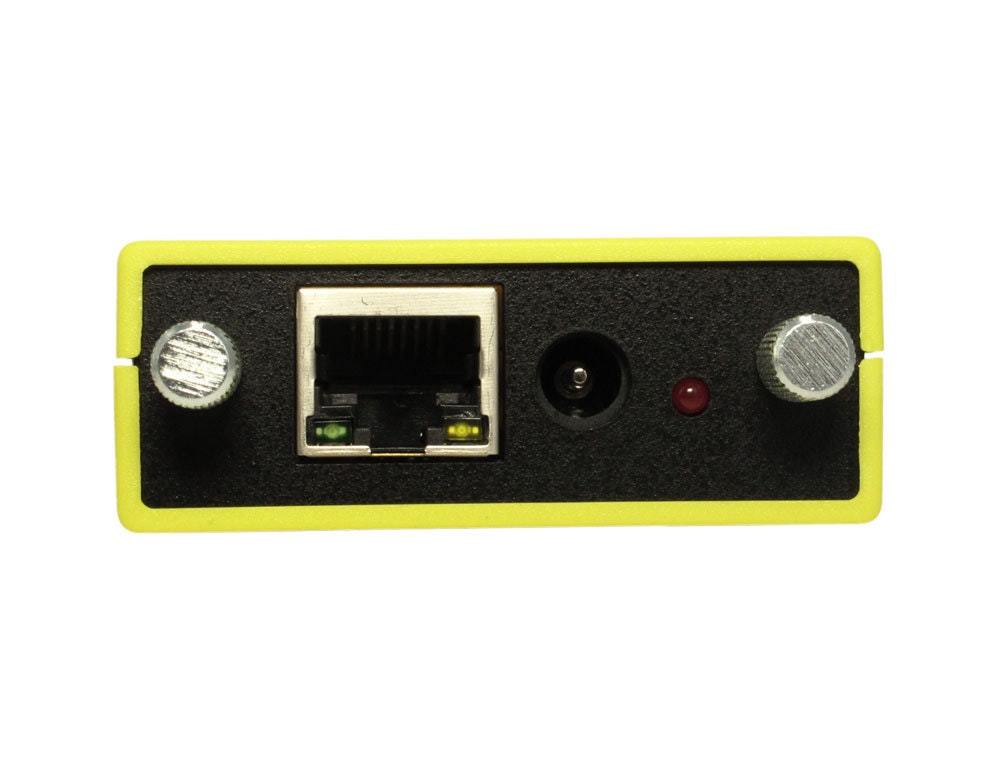

Prologix GPIB to Ethernet (LAN) Controller
Use this controller to control, and to download screen plots and data from, Oscilloscopes, Logic Analyzers, Spectrum Analyzers and other GPIB (HPIB) enabled instruments. GPIB-ETHERNET (GPIB-LAN) controller uses the same command interface as the popular Prologix GPIB-USB controller. Being a network device, there are no drivers to install.
The GPIB-ETHERNET supports both static IP addresses and dynamic (DHCP) IP and can be switched to either controller mode or device mode.
Specifications
Mfg. Part Number
- GPIB-ETH
Brand
- Prologix
Supported OS
- FreeBSD
- Linux
- Mac OS 8/9/X
- Windows 10
- Windows 7
- Windows 8
- Windows 98/2000/XP/Vista
Supported Standards
- IEEE 488.1
- IEEE 488.2
GPIB commands not supported
- PARALLEL POLL
- PASS CONTROL
Power
- 8-15V DC, 200 mA (included)
Indicator Light
- Power
IP Configuration
- Static and Dynamic (DHCP)
TCP Port
- 1234
Dimensions
- 2.5 in. (L) x 2.5 in. (W) x 1.0 in. (H)
Weight
- 3 oz.
Package Contents
- 1 - GPIB Controler
- 1 - Power Supply
Original: $499.98
-70%$499.98
$149.99Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Use this controller to control, and to download screen plots and data from, Oscilloscopes, Logic Analyzers, Spectrum Analyzers and other GPIB (HPIB) enabled instruments. GPIB-ETHERNET (GPIB-LAN) controller uses the same command interface as the popular Prologix GPIB-USB controller. Being a network device, there are no drivers to install.
The GPIB-ETHERNET supports both static IP addresses and dynamic (DHCP) IP and can be switched to either controller mode or device mode.
Specifications
Mfg. Part Number
- GPIB-ETH
Brand
- Prologix
Supported OS
- FreeBSD
- Linux
- Mac OS 8/9/X
- Windows 10
- Windows 7
- Windows 8
- Windows 98/2000/XP/Vista
Supported Standards
- IEEE 488.1
- IEEE 488.2
GPIB commands not supported
- PARALLEL POLL
- PASS CONTROL
Power
- 8-15V DC, 200 mA (included)
Indicator Light
- Power
IP Configuration
- Static and Dynamic (DHCP)
TCP Port
- 1234
Dimensions
- 2.5 in. (L) x 2.5 in. (W) x 1.0 in. (H)
Weight
- 3 oz.
Package Contents
- 1 - GPIB Controler
- 1 - Power Supply
